kTRM — Options Analytics Engine

Problem

Quants need a fast feedback loop between raw options market data and a usable volatility surface. Off-the-shelf tools either solve implied vol slowly in pure Python or hide the calibration behind a black box, leaving no way to inspect arbitrage violations strike by strike.

Approach

Built a vertically integrated stack: a native C++ Jaeckel solver with OpenMP threading handles implied vol, Python wraps it via zero-copy ctypes, eSSVI surface fitting enforces no-arbitrage via penalty terms, and a Textual TUI plus a Dash/Plotly web dashboard surface the results. Databento L1 data flows in through a managed Parquet pipeline.

Key Decision

Pushed the solver to native C++ rather than staying in NumPy. The Jaeckel method is iterative and runs millions of times per session — keeping it in Python would have made the interactive dashboards unusable. The ctypes bridge takes minutes to write and pays for itself the first time you scan the full SPX chain.

Result

8.2 million contracts per second through the solver, eight per-tenor diagnostics (ATM IV, 25-delta risk reversal, butterfly, skew, variance swap level, forward vol, IV spread, R²) computed live, and 189 arbitrage violations flagged on SPY alone (185 butterfly, 4 calendar) in the first full-chain scan.

C++ Implied Volatility Solver

The Jaeckel method is implemented in native C++ with OpenMP threading and exposed to Python via zero-copy ctypes bindings. The solver processes 8.2 million contracts per second across the full chain, converting raw prices to implied volatilities that feed directly into surface fitting.

eSSVI Surface Calibration

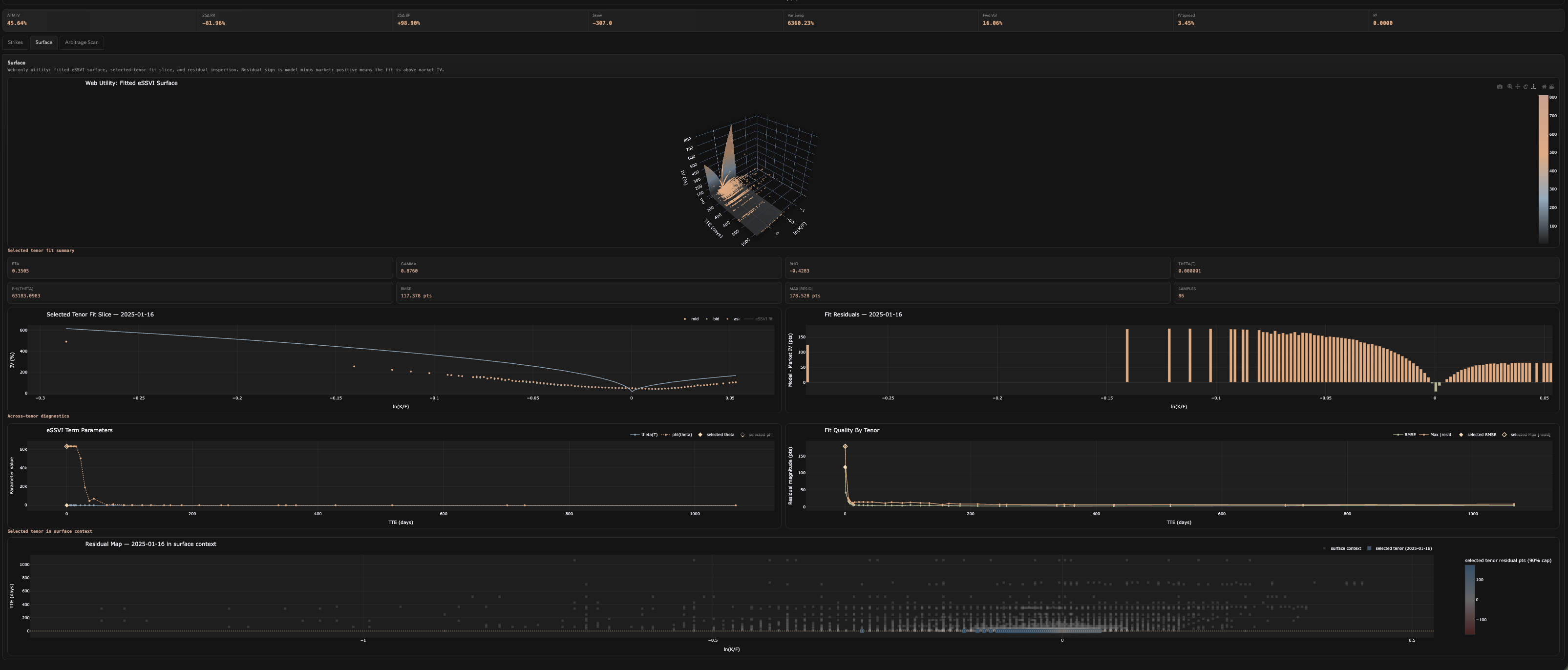

Fitted surfaces use the extended Surface SVI parameterization with penalty terms that enforce no-arbitrage constraints — butterfly and calendar spread violations are penalized during optimization. Each tenor produces 8 diagnostic metrics (ATM IV, 25-delta risk reversal, 25-delta butterfly, skew, variance swap level, forward vol, IV spread, and R²) plus residual plots.

Data Pipeline

Databento L1 options market data is fetched, validated, and stored as Parquet files through an integrated download manager. The pipeline maintains a contract hierarchy across SPX, OEX, VIX, SPY, QQQ, and ES with automatic expiry resolution and forward price computation.

Terminal UI + Web Dashboard

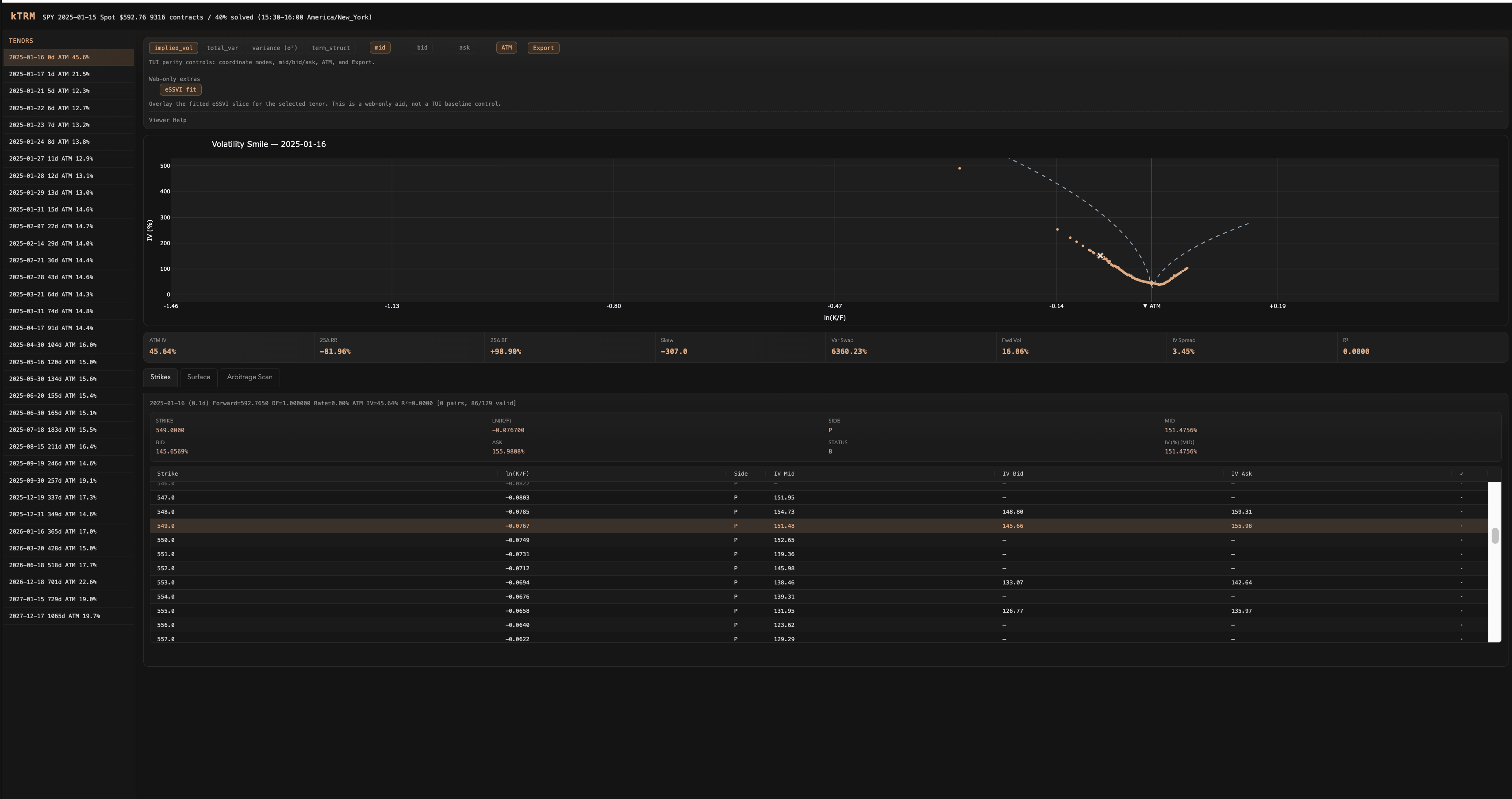

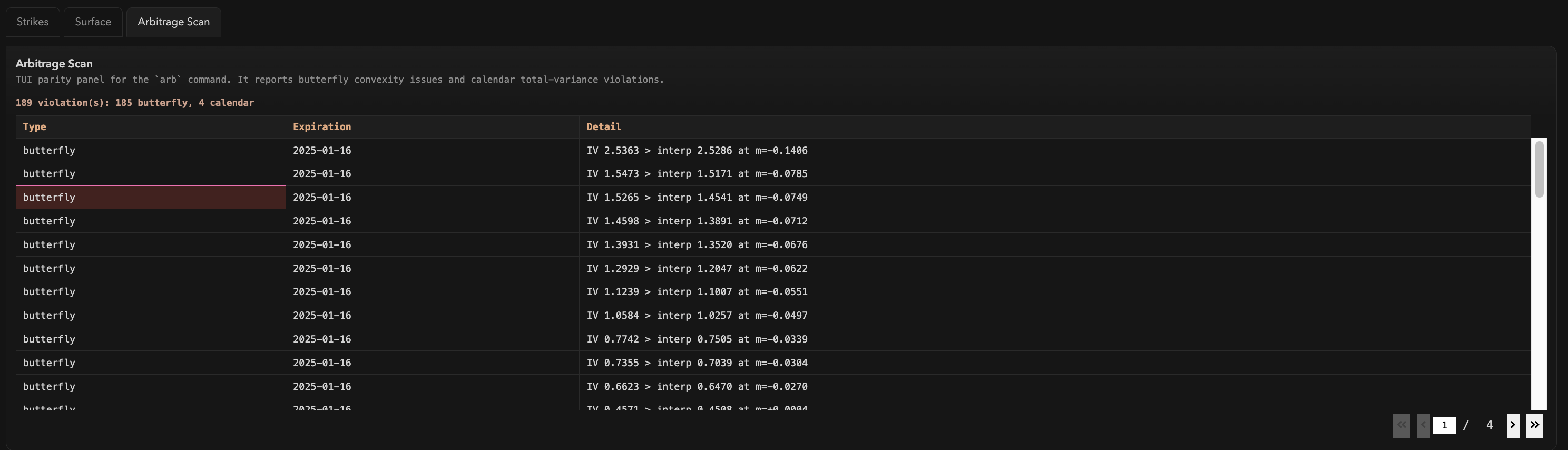

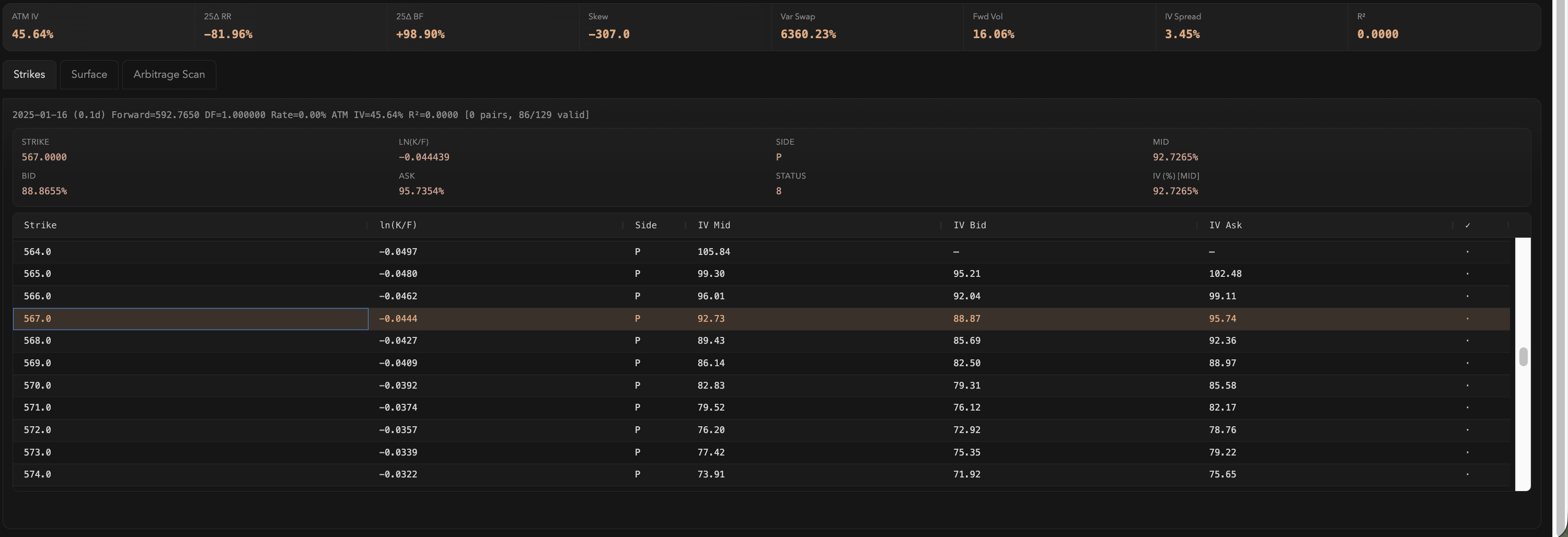

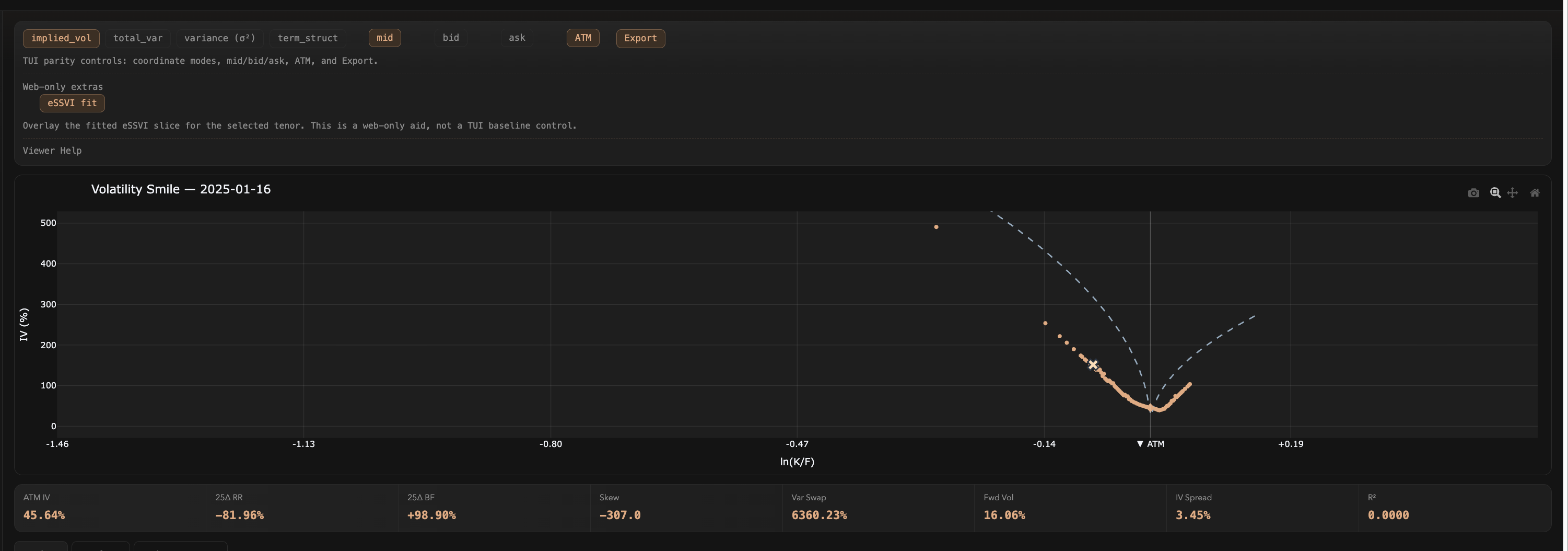

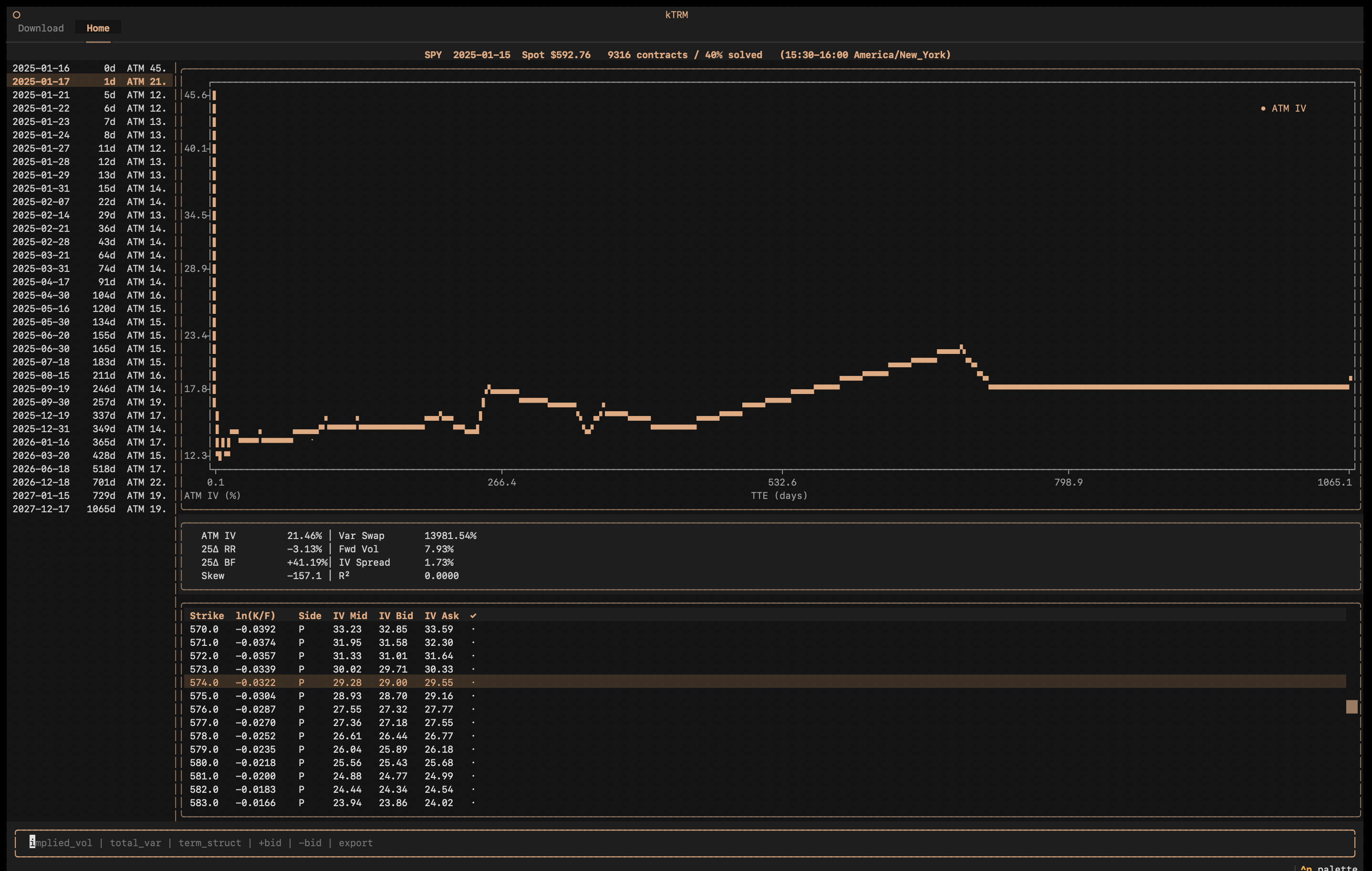

The Textual TUI supports tenor navigation, four coordinate modes (IV, total variance, sigma-squared, ATM term structure), bid/ask/mid series toggles, CSV export, and an autocompleting command bar. The Dash web UI adds interactive Plotly charts, a 3D surface viewer, eSSVI fit overlays, strike-level inspection via ag-Grid, and a paginated arbitrage scanner that flagged 189 violations (185 butterfly, 4 calendar) on SPY alone.
